Overview

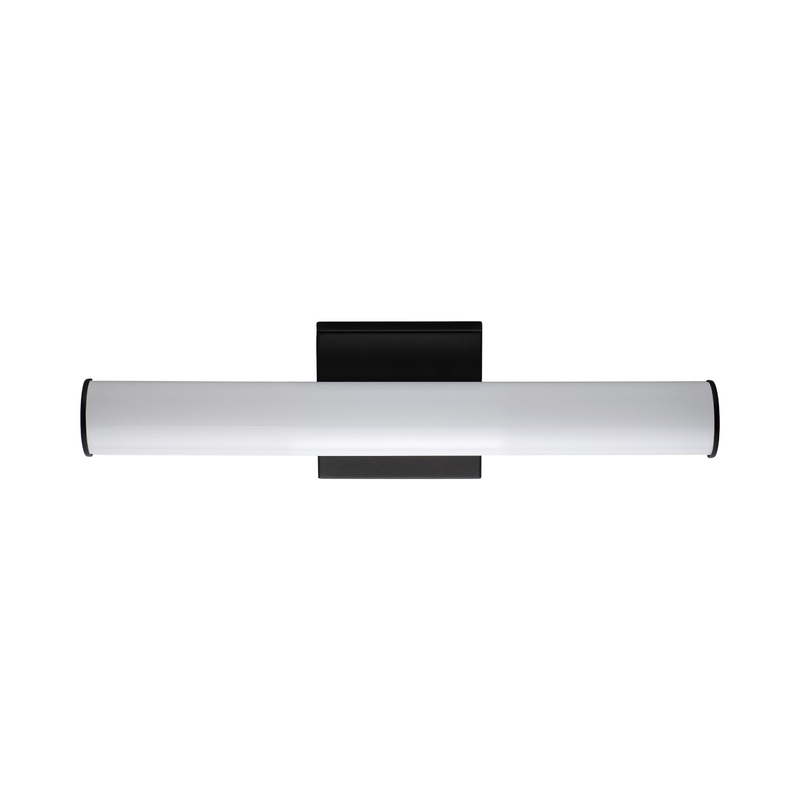

Tubular shaped white acrylic diffusers mount to frames of polished chrome, satin nickel, or black. Powered by 3000K LED these fixtures work well in a variety of contract applications.

Product Features:

• Collection: Rail
• Design Year: 2019
• Country of Origin: China
• Warranty: 5-Year
• Dimming: Triac CL
• ADA Compliant
• Title 24 Compliant
• Energy Star
• Available in various finishes, widths and color temperatures

NOTE: Select SKU(s) are on Display at our San Francisco Showroom.

Dimensions:

• 18-Inch: 18″W X 4.75″H; 2.5″ Extension
• Backplate: 4.75″W X 4.75″H
  Product Weight: 1.71 lbs

• 24-Inch: 24″W X 4.75″H; 2.5″ Extension
• Backplate: 4.75″W X 4.75″H
  Product Weight: 2.04 lbs

• 30-Inch: 30″W X 4.75″H; 2.5″ Extension
• Backplate: 4.75″W X 4.75″H
  Product Weight: 2.31 lbs

• 36-Inch: 36″W X 4.75″H; 2.5″ Extension
• Backplate: 4.75″W X 4.75″H
  Product Weight: 2.76 lbs

• 48-Inch: 48″W X 4.75″H; 2.5″ Extension
• Backplate: 4.75″W X 4.75″H
  Product Weight: 3.75 lbs

Lamping:

• 18-Inch: 1 X 12W 120V integrated LED module; 930 lumens, 90 CRI, 3000K (included)
• 24-Inch: 1 X 16W 120V integrated LED module; 1400 lumens, 90 CRI, 3000K or 2700K/3500K/4000K Selected CCT (included)
• 30-Inch: 1 X 20W 120V integrated LED module; 1690 lumens, 90 CRI, 3000K (included)
• 36-Inch: 1 X 24W 120V integrated LED module; 2040 lumens, 90 CRI, 3000K (included)
• 48-Inch: 1 X 32W 120V integrated LED module; 2240 lumens, 90 CRI, 3000K (included)

Ratings:

• Listing: ETL Listed, cETL Listed, cETLus Listed, Damp, IP65, Energy Star, ADA Compliant, Title 24 Compliant

Materials:

• Aluminum, Acrylic
