Multi-lamp functionality and architectural aesthetics define Nora Lightings recessed LED Multiple Lighting System. The recessed family of fixtures are available in one to three lamp linear configurations. The fixture fascia is slightly recessed above the ceiling line, creating a stylish coffered ceiling design. Each LED can independently rotate 360 and adjust vertically 35. A variety of fully adjustable trims are offered for independent aiming of each lamp.

Features

• Housing Only. Trim sold separately.
• Wattage/Lumens per head: 16W/900lm, 18W/1500lm, 27W/2500lm
• Voltage: 120-277V
• Dimming:0-10V dimming

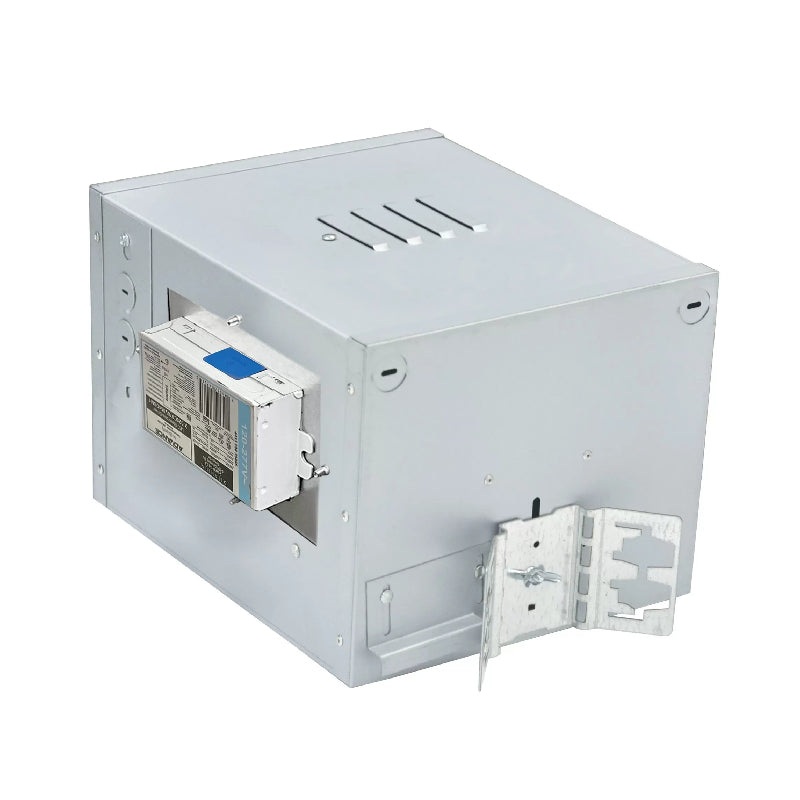

• Construction: 0.35″ galvanized steel with louver-type ventilation openings for proper heat dissipation

Dimensions

• Length: 9.5″
• Width: 9.5″
• Height: 8″
• Cutout: 8.5″ x 8.5″


Lamping

• 1 Light, 16W or 18W or 27W LED

Documents

• Spec Sheet
• Instruction Sheet
