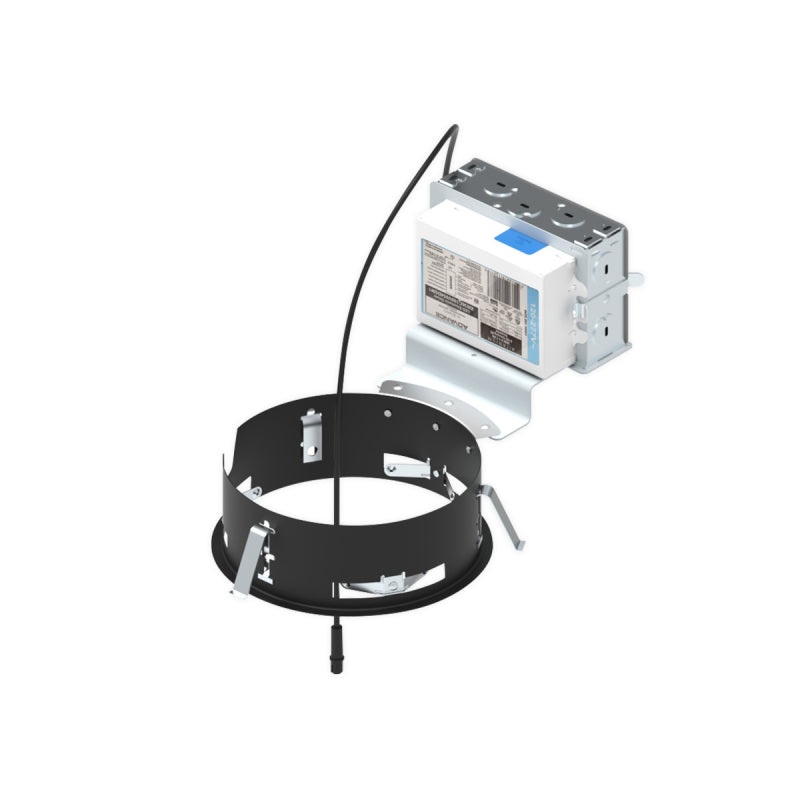

Remodel Frame-In for 6″ Sapphire III COB LED downlights includes three steel springs to secure the collar to the ceiling.

Features

• Trim sold separately
• Wattage: 26W
• Voltage: 120V
• Lumens: 2500
• Dimming: Phase Dimming (Triac/ELV), 0-10V Dimming
• Designed for installation in existing ceilings
• Frames require a minimum of 3″ from thermal insulation and 1/2″ from adjacent building component
• Remodel frame opening includes (3) “butterfly” spring clips to hold reflector assembly in place

Dimensions

• Length: 11.25″
• Width: 7″
• Height: 8.25″ max
• Cut-out: 6.5″

Documents

• Spec Sheet
• Instruction Sheet
