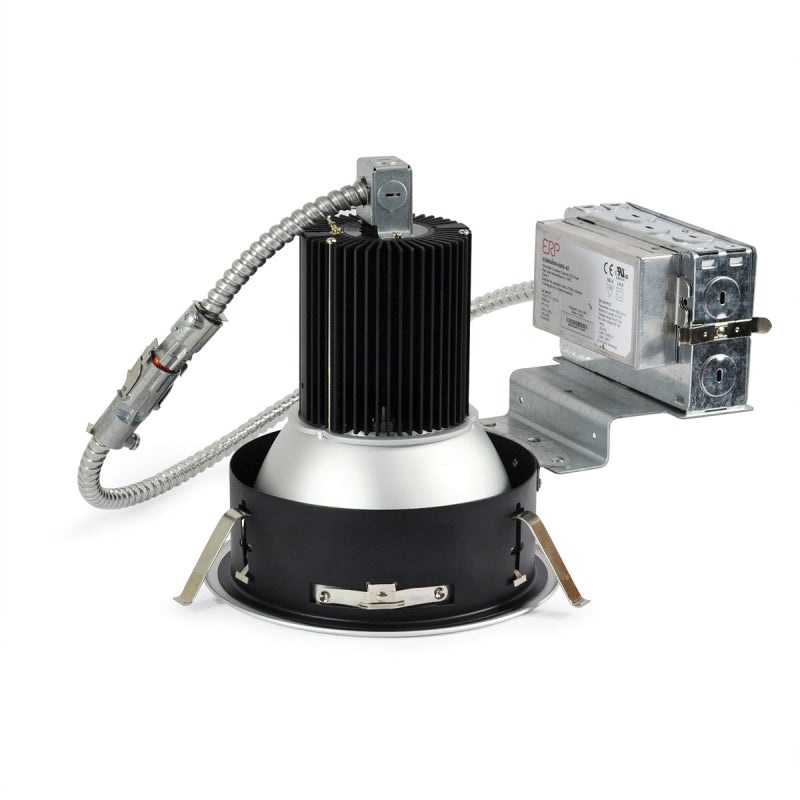

The Sapphire II COB Series is an architectural grade LED high lumen downlight. The Sapphire II uses the latest COB technology by Cree. The COB allows for better optic control offering 3 beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The Sapphire II series is available in 4″, 6″ or 8″ apertures and also in new construction or remodel frame-ins.

Features:

• Trim sold separately
• Wattage/ Lumens: 15W/ 900 lm, 18W/ 1500 lm, 30W/ 2500 lm, 46W/ 3500 lm, 60W/ 4500 lm
• Driver: 120-277V Input; 0-10V dimming, 120V Input; Triac/ELV/0-10V dimming
• Designed for installation in existing ceilings
• Three high tension tempered steel springs secure remodel housings evenly to the ceiling; hole cutout template provided for convenience
• Minimum Clearances: Frames require a minimum of 3″ from thermal insulation and 1/2″ from adjacent building component

Dimensions

• Length:11-1/4″
• Width: 7″
• Height:6-3/8″ to 8-3/4″
• Cutout: 6-1/2″

Lamping:

• 15W LED, 900 lm or
• 18W LED, 1500 lm or
• 30W LED, 2500 lm or
• 46W LED, 3500 lm or
• 60W LED, 4500 lm

Documents:

• Spec Sheet
• Instruction Sheet
