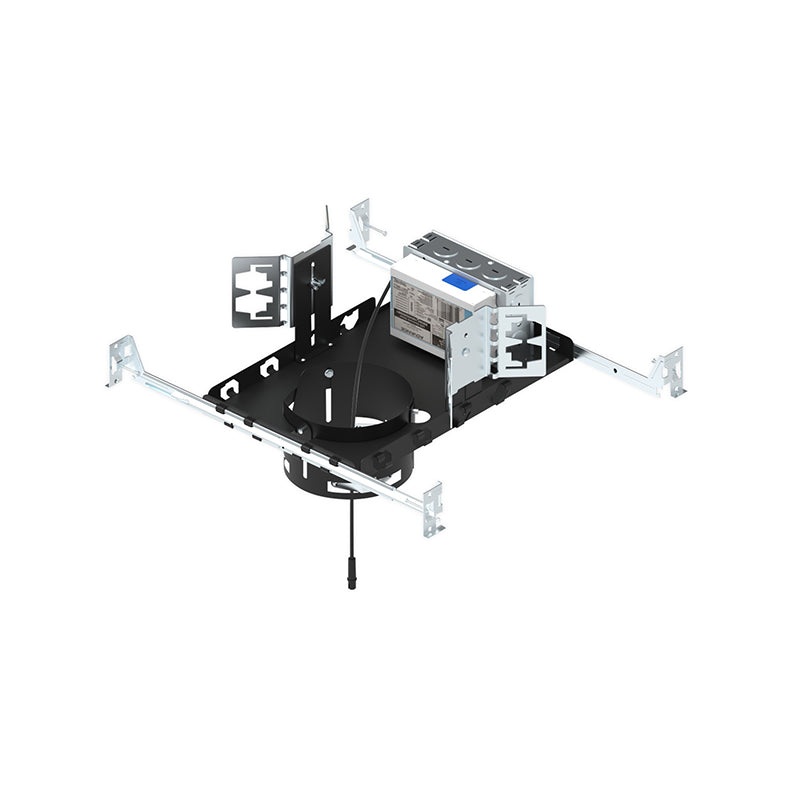

New Construction Frame-In for 4 Sapphire III COB LED downlights includes universal brackets and bar hangers that can be adjusted on either side of the flat frame.

Features

• Trim sold separately
• Wattage: 18W
• Voltage: 120V
• Lumens: 1500
• Phase Dimming (Triac/ELV)
• Optional emergency driver with remote test switch
• Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel(ordered separately) or rigid 1/2″ conduit
• Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included onframe
• Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2″ to 2″
• Minimum Clearances: Frames require a minimum of 3″ from thermal insulation and 1/2″ from adjacent building component

Dimensions

• Length: 12.13″
• Width: 7.63″
• Height: 4.75″ max
• Cut-out: 5″

Documents

• Spec Sheet
• Instruction Sheet
