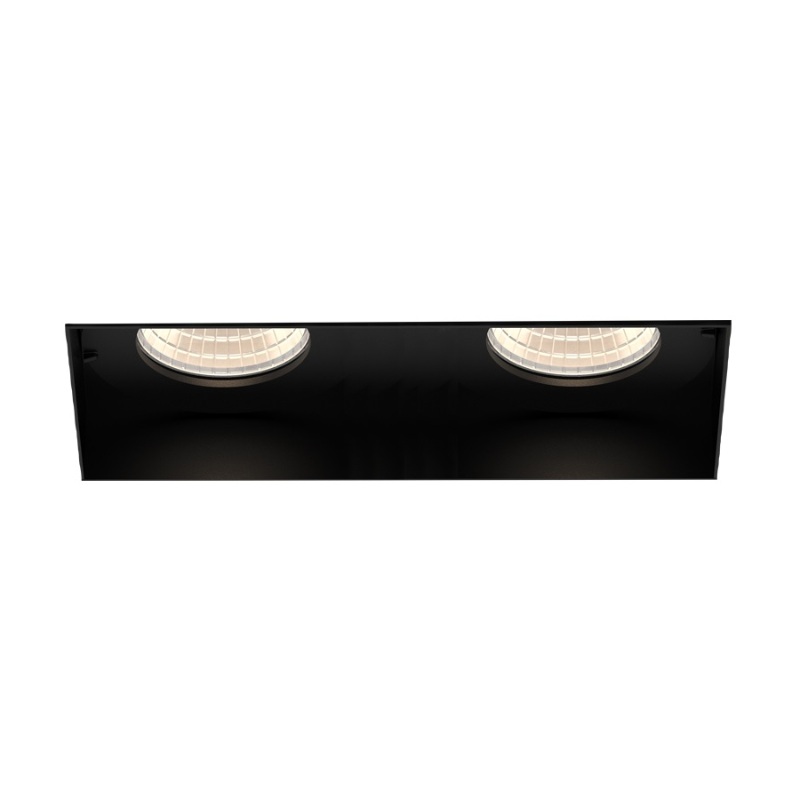

Tango is a specification grade LED recessed family, offering multiple options for design and functionality. Round and square, trim and trimless, 1, 2 and 3 light options and several task specific trim designs. Tango features 90+ CRI high performance LED chips, drivers with multi dimming capabilities and industry leading ease of installation and services.
Features
- Construction: 18 gauge powder coated steel body. Aluminum powder coated trimless mesh plate
- Finish: Black, White
- Diffuser: Linear Spread Lens
- Wattage: 20W
- Input Voltage: 120-277V
- Color Temperature: 2700K, 3000K, 3500K, 4000K
- Lumens: 1680
- Dimming: TRIAC/ELV/0-10V
- CRI: 90+
- Lumen Maintenance: 70%@50,000 hrs
- Beam: 15 Narrow, 24 Medium, 38 Wide
- Square without mounting trim
- High output, high efficiency LED COB
- Enclosed in a Junction box with 12″ flexible cable to mate to module connector
- IC Rated
Dimensions
- Light Aperture: 2″
- Length: 8.43″
- Width: 5″
- Height: 3.64″
- Cut Hole: 7″ x 3.25″
- Max Ceiling Thickness: 1.5″
- Minimum Height Clearance: 9.5″
